Introduction
CLaser develop the new GTR-KTP crystals. GTR-KTP has the
following exceptional properties compare with the S-KTP:
High damage threshold

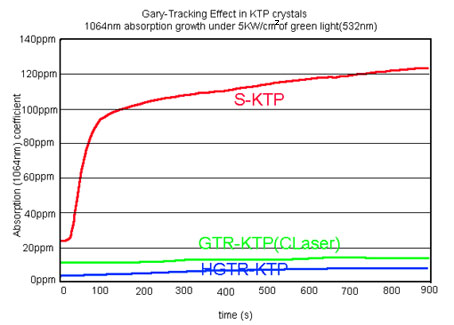

Without gary-track in high power cw intracavity application.
Lower absorption in 532nm
Higher resistivity
KTP is a positive biaxial crystal, with the principal axes X, Y, and Z (nz>ny>nx) parallel to the crystallographic axes a, b, and c, respectively.
Physical and Chemical Properties:
Please view NLO crysals physical Properities (dpf format)
The Sellmeier equations (l in µm ):
nx2=3.0065+0.03901/(l 2-0.04251)-0.01327l 2
ny2=3.0333+0.04154/(l 2-0.04547)-0.01408l 2
nz2=3.0065+0.05694/(l 2-0.05658)-0.01682l 2
Optical and Spectral Properties:
Please view NLO crysals optical and nonlinear optical Properities (dpf format) KTP’s Applications:
Frequency doubling (SHG) of Nd-doped lasers for green/red
outputs.
Frequency mixing (SFM) of Nd laser and diode laser
for blue outputs.
Parametric sources (OPG, OPA and OPO) for 600nm-4500nm
tunable outputs.
E-O modulators, optical switches, directional couplers.
Optical waveguides for integrated NLO and E-O devices.
GTR-KTP Specifications:
Dimension tolerance |
(W ± 0.1 mm) x (H ± 0.1 mm) x (L + /-0.2 mm) |
Transmitting wavefront distortion: |
l/8 @ 633 nm |
Clear aperture: |
> 90% central area |
Flatness: |
l/8 @ 633 nm |
Scratch/Dig code: |
10/5 to MIL-O-13830A |
Parallelism: |
better than 20 arc seconds |
Perpendicularity: |
15 arc minutes |
Angle tolerance: |
Dq < ±0.3°, Df < ± 0.3° |
AR coating: |
R< 0.1% at 1064nm and R<0.4% at 532 nm. |
Quality Warranty Period: |
one year under proper use. |
|
