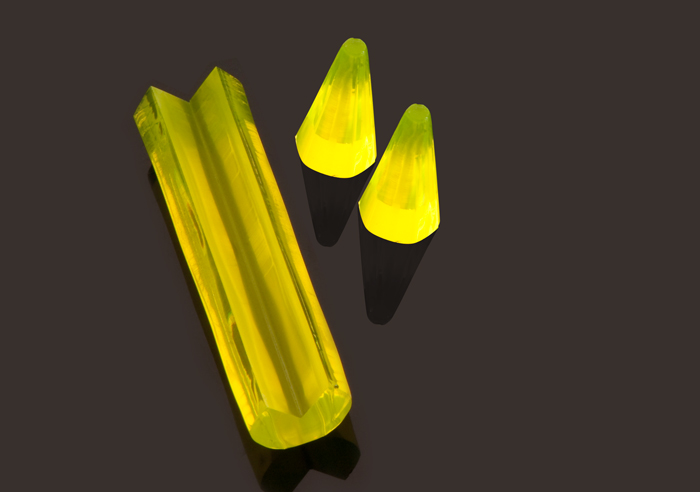

Cerium-doped YAG(Ce:3+:Y3Al5O12) is commonly used as a phosphor in cathode ray tubes and white light-emitting diodes, and as a scintillator.



Physical Properties

Coefficient of Thermal Expansion	6.14 x 10 -6 K -1
Thermal Diffusivity	0.041 cm 2 s -2
Thermal Conductivity	11.2 W m -1 K -1
Specific Heat (Cp)	0.59 J g -1 K -1
Thermal Shock Resistant	800 W m -1
Refractive Index @ 632.8 nm	1.83
dn/dT (Thermal Coefficient of Refractive Index) @ 1064nm	7.8 10 -6 K -1
Molecular Weight	593.7 g mol -1
Melting Point	1965°C
Density	4.56 g cm -3
MOHS Hardness	8.25
Young's Modulus	335 Gpa
Tensile Strength	2 Gpa
Crystal Structure	Cubic
Standard Orientation	<111> , <100>
Y3+ Site Symmetry	D 2
Lattice Constant	a=12.013 Å

Main Specification:

Doping	0.1-1.2%±0.1%
Dimension:	1x1mm to Dia.100x100mm
Orientation	111 cut or 100 cut
Perpendicularity	<15'
Parallelism	<1'
Flatness	l /8
Scratch-Dig	20/10
